The Basics of the Unix Shell

The heart of every CLI is a read-evaluate-print loop (REPL). When we type a command and press Return (also called Enter)

the CLI reads the command, evaluates it (i.e., executes it), prints the command’s output, and loops around to wait for another command. If you have used an interactive console for Python, you have already used a simple CLI.

This lesson introduces another CLI that lets us interact with our computer’s operating system. It is called a “command shell”, or just shell for short, and in essence is a program that runs other programs on our behalf. Those “other programs” can do things as simple as telling us the time or as complex as modeling global climate change; as long as they obey a few simple rules, the shell can run them without having to know what language they are written in or how they do what they do.

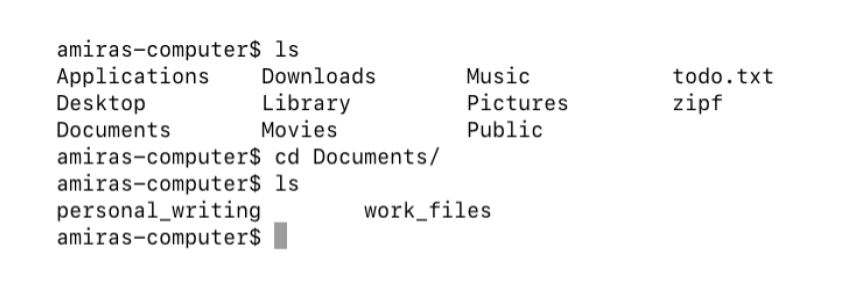

Fig. 1 The Shell

What’s in a Name?

Programmers have written many different shells over the last forty years, just as they have created many different text editors and plotting packages. The most popular shell today is called Bash\index{Bash}\index{Unix shell!Bash} (an acronym of Bourne Again SHell, and a weak pun on the name of its predecessor, the Bourne shell). Other shells may differ from Bash in minor ways, but the core commands and ideas remain the same. In particular, the most recent versions of MacOS use a shell called the Z Shell or zsh; we will point out a few differences as we go along.

Please see Section Getting Started for instructions on how to install and launch the shell on your computer.

Exploring Files and Directories

Our first shell commands will let us explore our folders and files, and will also introduce us to several conventions that most Unix tools follow. To start, when Bash runs it presents us with a prompt to indicate that it is waiting for us to type something. This prompt is a simple dollar sign by default:

$

However, different shells may use a different symbol: in particular, the zsh shell, which is the default on newer versions of MacOS, uses %. As we’ll see in Chapter Bash Advanced, we can customize the prompt to give us more information.

Don’t Type the Dollar Sign

We show the $ prompt so that it’s clear what you are supposed to type, particularly when several commands appear in a row, but you should not type it yourself.

Let’s run a command to find out who the shell thinks we are:

$ whoami

amira

Learn by Doing

Amira is one of the posible learners described in Section intended audience. For the rest of the book, we’ll present code and examples from her perspective. You should follow along on your own computer, though what you see might deviate in small ways because of differences in operating system (and because your name probably isn’t Amira).

Now that we know who we are, we can explore where we are and what we have. The part of the operating system that manages files and directories (also called folders is called the filesystem. Some of the most commonly used commands in the shell create, inspect, rename, and delete files and directories. Let’s start exploring them by running the command pwd, which stands for print working directory. The “print” part of its name is straightforward; the “working directory” part refers to the fact that the shell keeps track of our current working directory at all times. Most commands read and write files in the current working directory unless we tell them to do something else, so knowing where we are before running a command is important.

$ pwd

/Users/amira

Here, the computer’s response is /Users/amira, which tells us that we are in a directory called amira that is contained in a top-level directory called Users. This directory is Amira’s home directory to understand what that means, we must first understand how the filesystem is organized. On Amira’s computer the basic filesystem looks as follows:

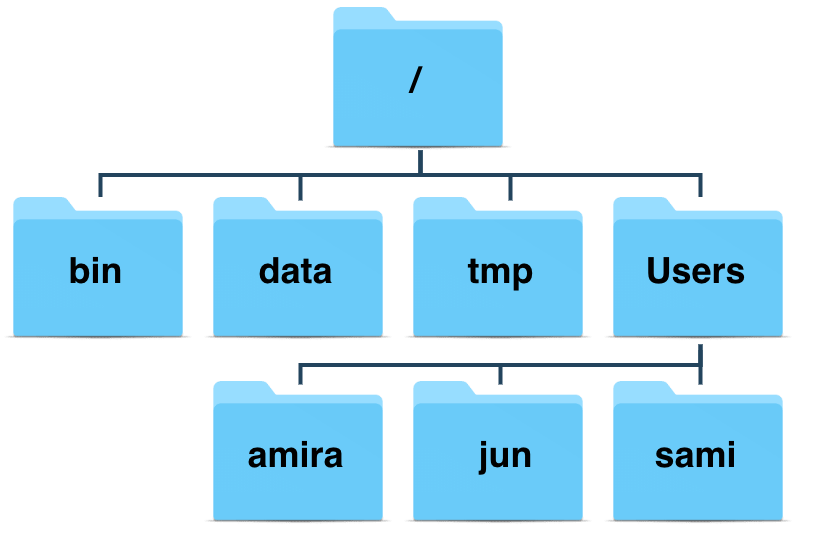

Fig. 2 Bash basic filesystem

At the top is the root directory that holds everything else, which we can refer to using a slash character / on its own. Inside that directory are several other directories, including bin (where some built-in programs are stored), data (for miscellaneous data files), tmp (for temporary files that don’t need to be stored long-term), and Users (where users’ personal directories are located, also called a home directory). We know that /Users is stored inside the root directory / because its name begins with /, and that our current working directory /Users/amira is stored inside /Users because /Users is the first part of its name. A name like this is called a path because it tells us how to get from one place in the filesystem (e.g., the root directory) to another (e.g., Amira’s home directory).

Slashes

The / character means two different things in a path. At the front of a path or on its own, it refers to the root directory. When it appears inside a name, it is a separator. Windows uses backslashes (\\) instead of forward slashes as separators.

Underneath /Users, we find one directory for each user with an account on this machine. Jun’s files are stored in /Users/jun, Sami’s in /Users/sami, and Amira’s in /Users/amira. This is where the name “home directory” comes from: when we first log in, the shell puts us in the directory that holds our files.

Home Directory Variations

Our home directory will be in different places on different operating systems. On Linux it may be /home/amira, and on Windows it may be C:\Documents and Settings\amira or C:\Users\amira (depending on the version of Windows). Our examples show what we would see on MacOS.

Now that we know where we are, let’s see what we have using the command ls short for “listing”, which prints the names of the files and directories in the current directory:

$ ls

Applications   Downloads     Music        todo.txt
Desktop        Library       Pictures     zipf
Documents      Movies        Public

Again, our results may be different depending on our operating system and what files or directories we have.

We can make the output of ls more informative using the -F option, also sometimes called a switch or a flag. Options are exactly like arguments to a function in Python; in this case, -F tells ls to decorate its output to show what things are. A trailing / indicates a directory, while a trailing * tells us something is a runnable program. Depending on our setup, the shell might also use colors to indicate whether each entry is a file or directory.

$ ls -F

Applications/   Downloads/     Music/        todo.txt
Desktop/        Library/       Pictures/     zipf/
Documents/      Movies/        Public/

Here, we can see that almost everything in our home directory is a subdirectory the only thing that isn’t is a file called todo.txt.

Spaces Matter

1+2 and 1 + 2 mean the same thing in mathematics, but ls -F and ls-F are very different things in the shell. The shell splits whatever we type into pieces based on spaces, so if we forget to separate ls and -F with at least one space, the shell will try to find a program called ls-F and (quite sensibly) give an error message like ls-F: command not found.

Some options tell a command how to behave, but others tell it what to act on. For example, if we want to see what’s in the /Users directory, we can type:

$ ls /Users

amira   jun     sami

We often call the file and directory names that we give to commands **arguments to distinguish them from the built-in options. We can combine options and arguments:

$ ls -F /Users

amira/  jun/    sami/

But we must put the options (like -F) before the names of any files or directories we want to work on, because once the command encounters something that isn’t an option it assumes there aren’t any more:

$ ls /Users -F

ls: -F: No such file or directory
amira   jun     sami

Command Line Differences

Code can sometimes behave in unexpected ways on different computers, and this applies to the command line as well. For example, the following code actually does work on some Linux operating systems:

$ ls /Users -F

Some people think this is convenient; others (including us) believe it is confusing, so it’s best to avoid doing this.

Moving Around

Let’s run ls again. Without any arguments, it shows us what’s in our current working directory:

$ ls -F

Applications/   Downloads/     Music/        todo.txt
Desktop/        Library/       Pictures/     zipf/
Documents/      Movies/        Public/

If we want to see what’s in the zipf directory we can ask ls to list its contents:

$ ls -F zipf

data/

Notice that zipf doesn’t have a leading slash before its name. This absence tells the shell that it is a relative path i.e., that it identifies something starting from our current working directory. In contrast, a path like /Users/amira is an absolute path it is always interpreted from the root directory down, so it always refers to the same thing. Using a relative path is like telling someone to go two kilometers north and then half a kilometer east; using an absolute path is like giving them the latitude and longitude of their destination.

We can use whichever kind of path is easiest to type, but if we are going to do a lot of work with the data in the zipf directory, the easiest thing would be to change our current working directory so that we don’t have to type zipf over and over again. The command to do this is cd, which stands for change directory. This name is a bit misleading because the command doesn’t change the directory; instead, it changes the shell’s idea of what directory we are in. Let’s try it out:

$ cd zipf

cd doesn’t print anything. This is normal: many shell commands run silently unless something goes wrong, on the theory that they should only ask for our attention when they need it. To confirm that cd has done what we asked, we can use pwd:

$ pwd

/Users/amira/zipf

$ ls -F

data/

Missing Directories and Unknown Options

If we give a command an option that it doesn’t understand, it will usually print an error message, and (if we’re lucky) tersely remind us of what we should have done:

$ cd -j

-bash: cd: -j: invalid option
cd: usage: cd [-L|-P] [dir]

On the other hand, if we get the syntax right but make a mistake in the name of a file or directory, it will tell us that:

$ cd whoops

-bash: cd: whoops: No such file or directory

We now know how to go down the directory tree, but how do we go up? This doesn’t work:

$ cd amira

cd: amira: No such file or directory

because amira on its own is a relative path meaning “a file or directory called amira below our current working directory.” To get back home, we can either use an absolute path:

$ cd /Users/amira

or a special relative path called .. (two periods in a row with no spaces),which always means “the directory that contains the current one.” The directory that contains the one we are in is called the parent directory and sure enough, .. gets us there:

$ cd ..
$ pwd

/Users/amira

ls usually doesn’t show us this special directory—since it’s always there, displaying it every time would be a distraction. We can ask ls to include it using the -a option, which stands for “all”. Remembering that we are now in /Users/amira:

$ ls -F -a

./              Documents/     Music/        zipf/
../             Downloads/     Pictures/
Applications/   Library/       Public/
Desktop/        Movies/        todo.txt

The output also shows another special directory called . (a single period), which refers to the current working directory. It may seem redundant to have a name for it, but we’ll see some uses for it soon.

Combining Options

You’ll occasionally need to use multiple options in the same command. In most command-line tools, multiple options can be combined with a single - and no spaces between the options:

$ ls -Fa

This command is synonymous with the previous example. While you may see commands written like this, we don’t recommend you use this approach in your own work. This is because some commands take long options with multi-letter names, and it’s very easy to mistake --no (meaning “answer ‘no’ to all questions”) with -no (meaning -n -o).

The special names . and .. don’t belong to cd: they mean the same thing to every program. For example, if we are in /Users/amira/zipf, then ls .. will display a listing of /Users/amira. When the meanings of the parts are the same no matter how they’re combined, programmers say they are orthogonal. NOTE The ability to use various features of software in any order or combination Orthogonal systems tend to be easier for people to learn because there are fewer special cases to remember.

Other Hidden Files

In addition to the hidden directories .. and ., we may also come across files with names like .jupyter. These usually contain settings or other data for particular programs; the prefix . is used to prevent ls from cluttering up the output when we run ls. We can always use the -a option to display them.

cd is a simple command, but it allows us to explore several new ideas. First, several .. can be joined by the path separator to move higher than the parent directory in a single step. For example, cd ../.. will move us up two directories (e.g., from /Users/amira/zipf to /Users), while cd ../Movies will move us up from zipf and back down into Movies.

What happens if we type cd on its own without giving a directory?

$ pwd

/Users/amira/Movies

$ cd
$ pwd

/Users/amira

No matter where we are, cd on its own always returns us to our home directory. We can achieve the same thing using the special directory name ~, which is a shortcut for our home directory:

$ ls ~

Applications   Downloads     Music        todo.txt
Desktop        Library       Pictures     zipf
Documents      Movies        Public

(ls doesn’t show any trailing slashes here because we haven’t used -F.) We can use ~ in paths, so that (for example) ~/Downloads always refers to our download directory.

Finally, cd interprets the shortcut - (a single dash) to mean the last directory we were in. Using this is usually faster and more reliable than trying to remember and type the path, but unlike ~, it only works with cd: ls - tries to print a listing of a directory called - rather than showing us the contents of our previous directory.

Creating New Files and Directories

We now know how to explore files and directories, but how do we create them? To find out, let’s go back to our zipf directory:

$ cd ~/zipf
$ ls -F

data/

To create a new directory, we use the command mkdir (short for make directory):

$ mkdir docs

Since docs is a relative path (i.e., does not have a leading slash) the new directory is created below the current working directory:

$ ls -F

data/  docs/

Using the shell to create a directory is no different than using a graphical tool. If we look at the current directory with our computer’s file browser we will see the docs directory there too. The shell and the file explorer are two different ways of interacting with the files; the files and directories themselves are the same.

Naming Files and Directories

Complicated names of files and directories can make our life painful. Following a few simple rules can save a lot of headaches:\index{filesystem!naming conventions}\index{naming conventions!filesystem}

1. Don’t use spaces. Spaces can make a name easier to read, but since they are used to separate arguments on the command line, most shell commands interpret a name like My Thesis as two names My and Thesis. Use - or _ instead, e.g., My-Thesis or My_Thesis.

2. Don’t begin the name with - (dash) to avoid confusion with command options like -F.

3. Stick with letters, digits, . (period or ‘full stop’), - (dash) and _ (underscore). Many other characters mean special things in the shell. We will learn about some of those special characters during this lesson, but the characters cited here are always safe.

If we need to refer to files or directories that have spaces or other special characters in their names, we can surround the name in quotes (""). For example, ls "My Thesis" will work where ls My Thesis does not.

Since we just created the docs directory, ls doesn’t display anything when we ask for a listing of its contents:

$ ls -F docs

Let’s change our working directory to docs using cd, then use a very simple text editor called nano to create a file called draft.txt nano_editor :

$ cd docs
$ nano draft.txt

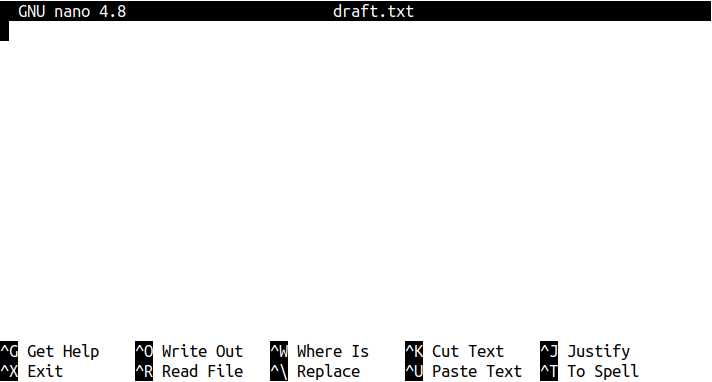

Fig. 3 Nano Editor

When we say “Nano is a text editor” we really do mean “text”: it can only work with plain character data, not spreadsheets, images, Microsoft Word files, or anything else invented after 1970. We use it in this lesson because it runs everywhere, and because it is as simple as something can be and still be called an editor.

Recycling Pixels

Unlike most modern editors, Nano runs inside the shell window instead of opening a new window of its own. This is a holdover from an era when graphical terminals were a rarity and different applications had to share a single screen.

Once Nano is open we can type in a few lines of text, then press Ctrl+O (the Control key and the letter ‘O’ at the same time) to save our work. Nano will ask us what file we want to save it to; press Return to accept the suggested default of draft.txt. Once our file is saved, we can use Ctrl+X to exit the editor and return to the shell.

Control, Ctrl, or ^ Key

The Control key, also called the “Ctrl” key, can be described in a bewildering variety of ways. For example, Control plus X may be written as:

• Control-X

• Control+X

• Ctrl-X

• Ctrl+X

• C-x

• ^X

When Nano runs, it displays some help in the bottom two lines of the screen using the last of these notations: for example, ^G Get Help means “use Ctrl+G to get help” and ^O WriteOut means “use Ctrl+O to write out the current file.”

Nano doesn’t leave any output on the screen after it exits, but ls will show that we have indeed created a new file draft.txt:

$ ls

draft.txt

Dot Something

All of Amira’s files are named “something dot something.” This is just a convention: we can call a file mythesis or almost anything else. However, both people and programs use two-part names to help them tell different kinds of files apart. The part of the filename after the dot is called the filename extension and indicates what type of data the file holds: .txt for plain text, .pdf for a PDF document, .png for a PNG image, and so on. This is just a convention: saving a PNG image of a whale as whale.mp3 doesn’t somehow magically turn it into a recording of whalesong, though it might cause the operating system to try to open it with a music player when someone double-clicks it.

Moving Files and Directories

Let’s go back to our zipf directory:

cd ~/zipf

The docs directory contains a file called draft.txt. That isn’t a particularly informative name, so let’s change it using mv (short for move):

$ mv docs/draft.txt docs/prior-work.txt

The first argument tells mv what we are “moving”, while the second is where it’s to go. “Moving” docs/draft.txt to docs/prior-work.txt has the same effect as renaming the file:

$ ls docs

prior-work.txt

We must be careful when specifying the destination because mv will overwrite existing files without warning. An option -i (for “interactive”) makes mv ask us for confirmation before overwriting. mv also works on directories, so mv analysis first-paper would rename the directory without changing its contents.

Now suppose we want to move prior-work.txt into the current working directory. If we don’t want to change the file’s name, just its location, we can provide mv with a directory as a destination and it will move the file there. In this case, the directory we want is the special name . that we mentioned earlier:

$ mv docs/prior-work.txt .

ls now shows us that docs is empty:

$ ls docs

and that our current directory now contains our file:

$ ls

data/  docs/  prior-work.txt

If we only want to check that the file exists, we can give its name to ls just like we can give the name of a directory:

$ ls prior-work.txt

prior-work.txt

Copying Files and Directories

The cp command copies files. It works like mv except it creates a file instead of moving an existing one:

$ cp prior-work.txt docs/section-1.txt

We can check that cp did the right thing by giving ls two arguments to ask it to list two things at once:

$ ls prior-work.txt docs/section-1.txt

docs/section-1.txt  prior-work.txt

Notice that ls shows the output in alphabetical order. If we leave off the second filename and ask it to show us a file and a directory (or multiple directories) it lists them one by one:

$ ls prior-work.txt docs

prior-work.txt

docs:
section-1.txt

Copying a directory and everything it contains is a little more complicated. If we use cp on its own, we get an error message:

$ cp docs backup

cp: docs is a directory (not copied).

If we really want to copy everything, we must give cp the -r option (meaning recursive):

$ cp -r docs backup

Once again we can check the result with ls:

$ ls docs backup

docs/:
section-1.txt

backup/:
section-1.txt

Copying Files to and from Remote Computers

For many researchers, a motivation for learning how to use the shell is that it’s often the only way to connect to a remote computer (e.g., located at a supercomputing facility or in a university department).

Similar to the cp command, there exists a secure copy (scp) command for copying files between computers. See Appendix TODO(ssh) for details, including how to set up a secure connection to a remote computer via the shell.

Deleting Files and Directories

Let’s tidy up by removing the prior-work.txt file we created in our zipf directory. The command to do this is rm (for remove):

$ rm prior-work.txt

We can confirm the file is gone using ls:

$ ls prior-work.txt

ls: prior-work.txt: No such file or directory

Deleting is forever: unlike most GUIs, the Unix shell doesn’t have a trash bin that we can recover deleted files from. Tools for finding and recovering deleted files do exist, but there is no guarantee they will work, since the computer may recycle the file’s disk space at any time. In most cases, when we delete a file it really is gone.

In a half-hearted attempt to stop us from erasing things accidentally, rm refuses to delete directories:

$ rm docs

rm: docs: is a directory

We can tell rm we really want to do this by giving it the recursive option -r:

$ rm -r docs

rm -r should be used with great caution: in most cases, it’s safest to add the -i option (for interactive) to get rm to ask us to confirm each deletion. As a halfway measure, we can use -v (for verbose) to get rm to print a message for each file it deletes. This option works the same way with mv and cp.

Wildcards

zipf/data contains the text files for several ebooks from Project Gutenberg:

$ ls data

README.md         moby_dick.txt
dracula.txt       sense_and_sensibility.txt
frankenstein.txt  sherlock_holmes.txt
jane_eyre.txt     time_machine.txt

The wc command (short for word count) tells us how many lines, words, and letters there are in one file:

$ wc data/moby_dick.txt

 22331  215832 1276222 data/moby_dick.txt

What’s in a Word?

wc only considers spaces to be word breaks: if two words are connected by a long dash—like “dash” and “like” in this sentence—then wc will count them as one word.

We could run wc more times to find out how many lines there are in the other files, but that would be a lot of typing and we could easily make a mistake. We can’t just give wc the name of the directory as we do with ls:

$ wc data

wc: data: read: Is a directory

Instead, we can use wildcards to specify a set of files at once. The most commonly used wildcard is * (a single asterisk). It matches zero or more characters, so data/*.txt matches all of the text files in the data directory:

$ ls data/*.txt

data/dracula.txt       data/sense_and_sensibility.txt
data/frankenstein.txt  data/sherlock_holmes.txt
data/jane_eyre.txt     data/time_machine.txt
data/moby_dick.txt

while data/s*.txt only matches the two whose names begin with an ‘s’:

$ ls data/s*.txt

data/sense_and_sensibility.txt  data/sherlock_holmes.txt

Wildcards are expanded to match filenames before commands are run, so they work exactly the same way for every command. This means that we can use them with wc to (for example) count the number of words in the books with names that contain an underscore:

$ wc data/*_*.txt

  21054  188460 1049294 data/jane_eyre.txt
  22331  215832 1253891 data/moby_dick.txt
  13028  121593  693116 data/sense_and_sensibility.txt
  13053  107536  581903 data/sherlock_holmes.txt
   3582   35527  200928 data/time_machine.txt
  73048  668948 3779132 total

or the number of words in Frankenstein:

$ wc data/frank*.txt

  7832  78100 442967 data/frankenstein.txt

The exercises will introduce and explore other wildcards. For now, we only need to know that it’s possible for a wildcard expression to not match anything. In this case, the command will usually print an error message:

$ wc data/*.csv

wc: data/*.csv: open: No such file or directory

Reading the Manual

wc displays lines, words, and characters by default, but we can ask it to display only the number of lines:

$ wc -l data/s*.txt

  13028 sense_and_sensibility.txt
  13053 sherlock_holmes.txt
  26081 total

wc has other options as well. We can use the man command (short for manual) to find out what they are:

$ man wc

Paging through the Manual

If our screen is too small to display an entire manual page at once, the shell will use a paging program called less to show it piece by piece. We can use ↑ and ↓ to move line-by-line or Ctrl+Spacebar and Spacebar to skip up and down one page at a time. (B and F also work.)

To search for a character or word, use / followed by the character or word to search for. If the search produces multiple hits, we can move between them using N (for “next”). To quit, press Q.

Manual pages contain a lot of information—often more than we really want. Man callouts include excerpts from the manual on your screen, and highlights a few of features useful for beginners.

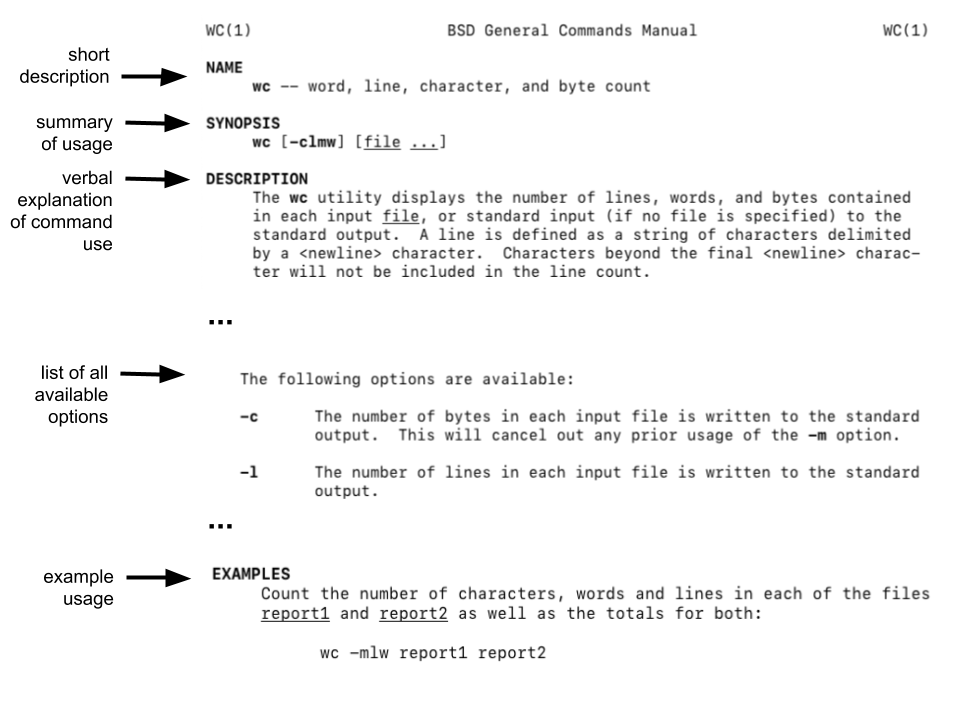

Fig. 4 Bash basics manual

Some commands have a --help option that provides a succinct summary of possibilities, but the best place to go for help these days is probably the TLDR website. The acronym stands for “too long, didn’t read,” and its help for wc displays this:

wc
Count words, bytes, or lines.

Count lines in file:
wc -l {{file}}

Count words in file:
wc -w {{file}}

Count characters (bytes) in file:
wc -c {{file}}

Count characters in file (taking multi-byte character sets into
account):
wc -m {{file}}

For more information, we can search on Stack Overflow or browse the GNU manuals (particularly those for the core GNU utilities, which include many of the commands introduced in this lesson). In all cases, though, we need to have some idea of what we’re looking for in the first place: someone who wants to know how many lines there are in a data file is unlikely to think to look for wc.

Summary

The original Unix shell is celebrating its fiftieth anniversary. Its commands may be cryptic, but few programs have remained in daily use for so long. The next chapter will explore how we can combine and repeat commands in order to create powerful, efficient workflows.

You can continue as is or you may start doing the first part of the shell related exercises here.

These can be run online, just follow the instruction, right now you will not need a local version of the software, but later on this will be a necessity to follow along.

Key Points

• A shell is a program that reads commands and runs other programs.

• The filesystem manages information stored on disk.

• Information is stored in files, which are located in directories (folders).

• Directories can also store other directories, which forms a directory tree.

• pwd prints the user’s current working directory.

• / on its own is the *root directory* of the whole filesystem.

• ls prints a list of files and directories.

• An **absolute path specifies a location from the root of the filesystem.

• A relative pathspecifies a location in the filesystem starting from the current directory.

• cd changes the current working directory.

• .. means the parent directory.

• . on its own means the current directory.

• mkdir creates a new directory.

• cp copies a file.

• rm removes (deletes) a file.

• mv moves (renames) a file or directory.

• * matches zero or more characters in a filename.

• ? matches any single character in a filename.

• wc counts lines, words, and characters in its inputs.

• man displays the manual page for a given command; some commands also have a --help option.
